Wide Range Of Sheets , Plates & Coil
Our forged fittings are crafted for high-pressure and high-temperature applications, available in types like elbows, tees, couplings, unions, plugs, bushings, and caps. We manufacture them in materials such as stainless steel, carbon steel, alloy steel, and high nickel alloys, adhering to standards like ASME/ANSI B16.11, with sizes ranging from 1/8” to 4” and pressure ratings of 2000#, 3000#, 6000#, and 9000#. These fittings come in socket weld and threaded connections, undergo strict quality testing, and are supplied with certifications like EN 10204 3.1/3.2 and NACE MR 01-75 compliance.

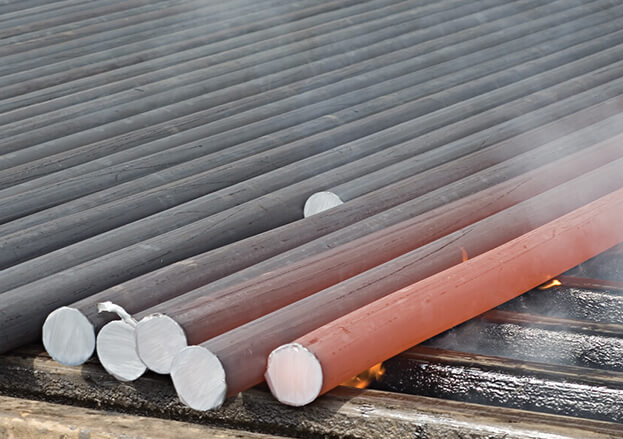

Round Bars
| Stainless Steel | ASTM A479, A182 - 202, 303, 304, 304L, 304H, 316, 316L, 316Ti, 309, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
|---|---|
| Duplex & Super Duplex | F 44, F 45, F 51, F 53, F 55, F 60, F 61 |
| Carbon Steel | ASTM A105, A350 LF2, A106 Gr A, B, C, A333 Gr 6, 3 |
| Alloy Steel | ASTM A182 F5, F9, F11, F12, F21, F22, F91, A335 Gr P1, P11, P12, P5, P9 |
| Nickel Alloys | Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) |
| Copper Alloy Steel | C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 |

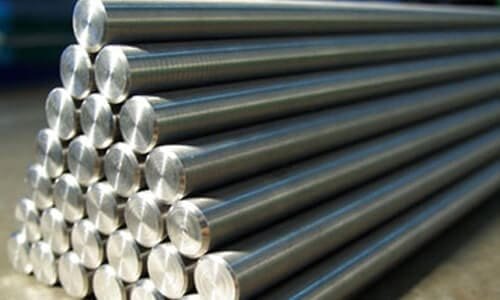

Stainless Steel & Duplex Steel
| Size Range | Diameter : 3.17 mm to 350 mm |
|---|---|
| Stainless Steel Grades | ASTM/ASME SA 276: TP 304, 304L, 309S, 309H, 310S, 316, 316L, 316TI, 317, 321, 347, 410, 420, 430, 431, 440A, 440B, 440C, 446 ASTM/ASME SA 479: TP 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 316L, 316TI, 317, 321, 321H, 347, 347H, 410, 430, 431, 444 |
| Duplex Steel Grades | ASTM/ASME SA 276: UNS S31803, S32205, S32550, S32750, S32760 |

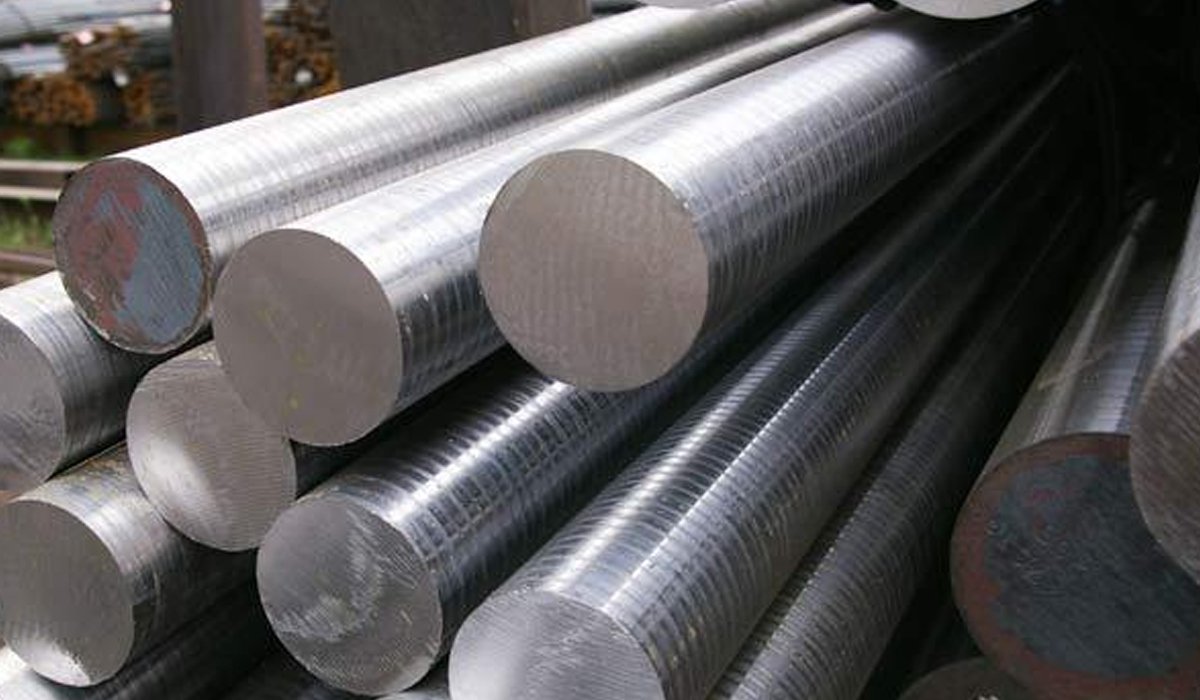

Carbon & Alloy Steel
| Size Range | Diameter 1 mm to 350 mm |
|---|---|
| Carbon Steel Grades | ASTM/ASME A105 High-Strength Carbon Steel |
| Alloy Steel Grades | ASTM/ASME A182 : Grades F5, F9, F11, F12, F22, F91 ASTM/ASME A729: Grades B11, B22 |

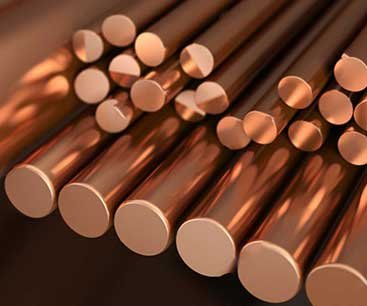

Nickel & Copper Alloy
| Range | 3.17 MM TO 350 MM DIA pipes and tubes |
|---|---|
| Nickel Alloy | ASTM / ASME SB 160 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201) ASTM / ASME SB 164 UNS 4400 (MONEL 400) ASTM / ASME SB 425 UNS 8825 (INCONEL 825) ASTM / ASME SB 166 UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601) ASTM / ASME SB 446 UNS 6625 (INCONEL 625) ASTM / ASME SB 574 UNS 10276 (HASTELLOY C 276) ASTM / ASME SB 472 UNS 8020 (ALLOY 20 / 20 CB 3) |
| Grades | Hastelloy C-22, C-276, C-2000 |
| Product Types | Round Bars, Bright Bars, Polished Bars, Black Round Bars, Forged Bars, Forged Round Bars, Hexagonal Bars, Forged Hexagonal Bars, Flat Bars, Rods |
Hastelloy
| Grades | Hastelloy C-22, C-276, C-2000 |
|---|---|
| Product Types | Round Bars, Bright Bars, Polished Bars, Black Round Bars, Forged Bars, Forged Round Bars, Hexagonal Bars, Forged Hexagonal Bars, Flat Bars, Rods |

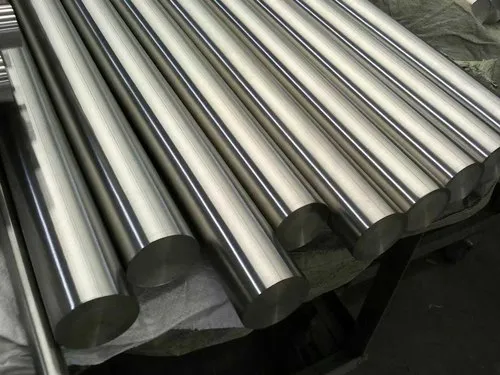

Inconel
| Grades | Inconel 600, 601, 625, 625LCF, 686, 718, 800, 825, X-750 |
|---|---|
| Size Range | Diameter : 1 mm to 200 mm |
| Product Types | Bars, Rods, Wires |
| Standards | ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE |
Monel
| Grades | Monel 400, Monel K500 |
|---|---|
| Range | 5 mm dia to 500 mm dia in 100 mm to 6000 mm length |
| Standard | ASTM / ASME SB 164 |

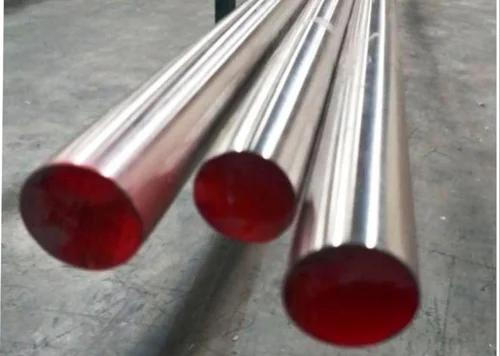

Nironics 50
| Grades | Nitronic 50 Stainless Steel |
|---|---|
| Superior Strength | Offers nearly double the yield strength at room temperature compared to Stainless Steel 316, 316L, 317, and 317L. |
| Exceptional Corrosion Resistance | Performs excellently in harsh environments, particularly in marine applications. |
| High-Temperature Performance | Maintains good mechanical properties at elevated and sub-zero temperatures. |
| Non-Magnetic | Remains non-magnetic even under severe cold working. |
| Fabrication Compatibility | Can be processed using the same equipment and procedures as Stainless Steel 300 series grades. |
| Efficient Cooling | Supports the same cooling techniques as Stainless Steel 316/316L and 317/317L. |

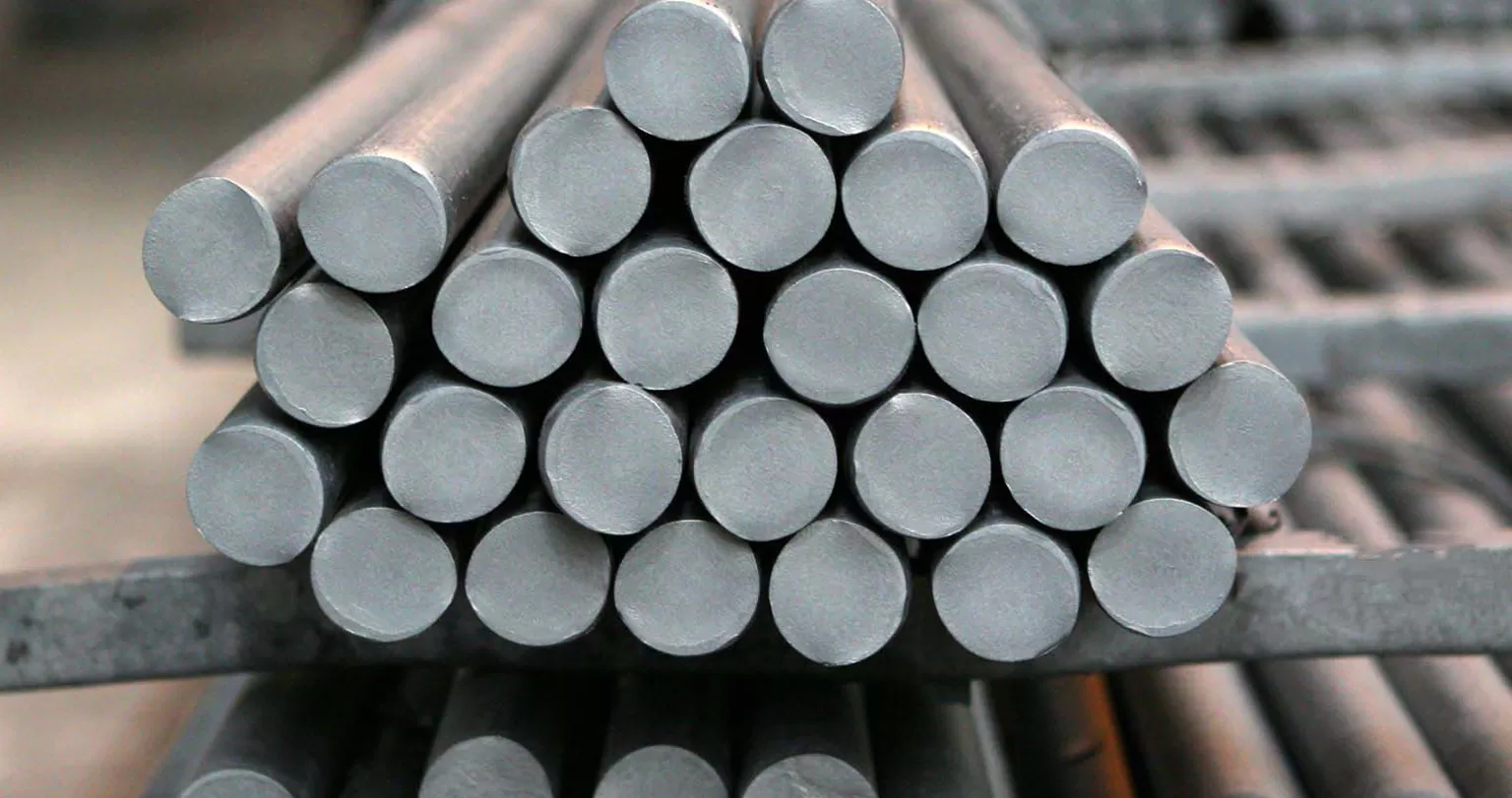

Nironics 60
| Grades | Nitronic 60 Stainless Steel |
|---|---|
| Overview | An austenitic alloy known for offering the best galling resistance among stainless steels. |
| Key Characteristics |
Galling & Wear Resistance: Exceptional performance in high-wear applications. High Pitting Resistance: Superior to many standard stainless steels. Corrosion Resistance: Excellent resistance to crevice corrosion and chloride pitting, surpassing Stainless Steel 316. High-Temperature Performance: Maintains properties up to 982°C. Oxidation Resistance: Reliable in oxidative environments. Weldability: Pre-heating not required; supports common welding techniques such as gas metal arc, gas tungsten arc, and submerged arc methods. Hardening: Achieved through cold working. |
| Chemical Composition |
Chromium: 16–18% Nickel: 8–9% Manganese: 7–9% Silicon: 3.5–4.5% Iron: Balance Trace Elements: Carbon, Sulfur, Phosphorus, Nitrogen |
Tantalum
| Specifications | Tantalum Bars and Rods |
|---|---|
| Material | Pure Tantalum (Ta), Tantalum-Tungsten Alloy |
| Grades | RO5200, RO5400, RO5252 (Ta-2.5W), RO5255 (Ta-10W) |
| Size Range | Diameter: 3mm to 120mm (Bars), 3mm to 100mm (Rods) |
| Standards | ASTM B365, ASTM B365-98 |
| Product Types | Tantalum Bars, Tantalum-Tungsten Alloy Bars, Tantalum Rods, Tantalum Alloy Rods |
| Purity | ≥99.95% or ≥99.99% |
Tolerance :

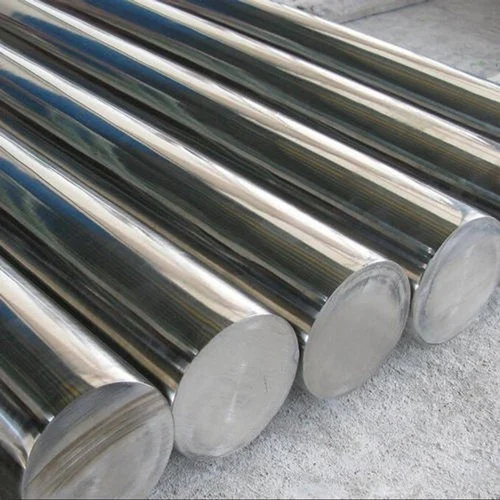

Titanium
| Specifications | Titanium Round Bars |
|---|---|
| Grades | Gr1, Gr2, Gr3, Gr4, Gr5 (Ti-6AL4V ELI), Gr7, Gr9, Gr12 |
| Standards | ASTM B348, ASTM F136, ASTM F67, AMS 4928 |
| Size | Diameter: 4mm to 350mm, Length: 50mm to 6000mm |
| Payment Terms | T/T or L/C at sight |
| MOQ | 10 kg |
| Packaging | Ply wooden case or as per request |
| Delivery Time | 7 to 30 days after confirmation |
| Applications | Industry, Glasses, and more |
Chemical Composition
Tensile requirements

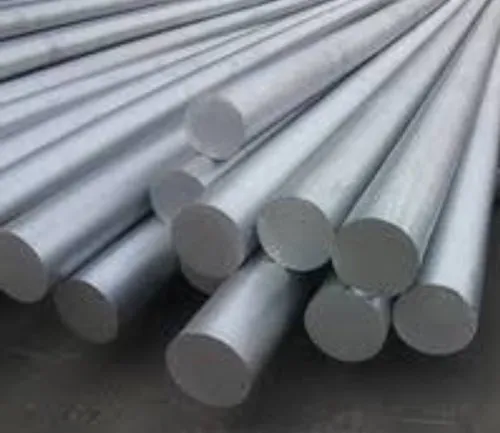

Aluminum
| Specifications | Aluminum Bars and Plates |
|---|---|
| Grades | 6061, 6063, 6082, 6101 |
| Size | Diameter: 25mm to 510mm, Length: up to 12 feet |
| Finish | Hot Rolled Plate (HR), Cold Rolled Sheet (CR), 2B, 2D, BA No(8), Satin (Plastic Coated) |
| Form | Round, Square, Hex (A/F), Bush, Rectangle, Flat, Wire Mesh |

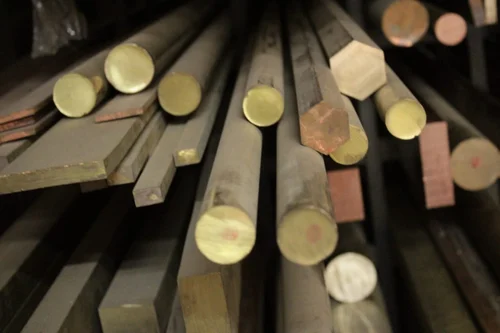

Brass
| Specifications | BRASS |
|---|---|
| Grades | Free Cutting Brass, Leading Brass, Foreign Brass, Riveting Brass, Lead-Free Brass, Naval Brass |
| Forms | Round, Hexagonals, Squares, Rods, Tubes, Sheets, Strips, Foils, Busbars, Plates, Flats, Wire, Tubings, Sections, Bushes |
| Size | 1000mm to 2500mm |
| Thickness | 0.3mm to 25mm |
